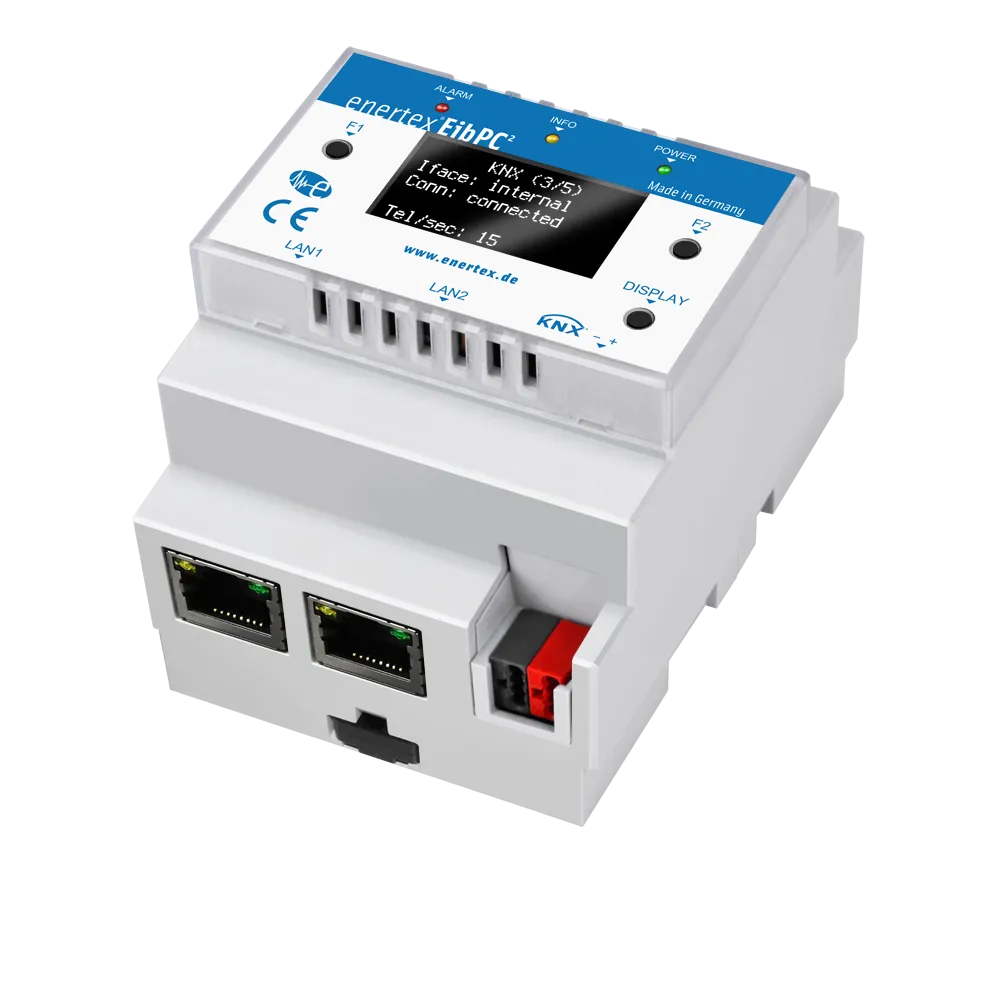

Enertex® EibPC² KNX with Option NP — Logic Controller & Visualization
  • New

Enertex® EibPC² KNX with Option NP — Logic Controller & Visualization

EN-1159-01
New

The Enertex® EibPC² with NP option is the reference KNX logic controller and web visualization platform for professional home automation. DIN rail (4 modules), bus-powered, integrated KNX IP interface.

  • KNX Data Secure — encrypted communication
  • Up to 65,000 KNX objects
  • MQTT, Modbus TCP, REST API, OpenVPN
  • Responsive web visualization
  • ⚡ Bus-powered — no external PSU needed
check In Stock
Hurry! only 1 items left in stock.
€811.76
Tax excluded
Quantity

Disponibile
Add to Compare
Add to Wishlist

EibPC² with NP option — The most powerful KNX controller on DIN rail

The Enertex® EibPC² with NP option is the all-in-one solution for advanced KNX home automation: it combines a programmable logic controller, KNX IP interface and web visualization in a single 4-module DIN rail unit, powered directly from the bus.

Key features

  • KNX Data Secure — encrypted group communication
  • Up to 65,000 KNX objects
  • Scenes, timers, schedules, logic machines, presence simulation
  • Long-term KNX telegram recording with FTP export
  • Integrated KNX IP interface for programming other devices via ETS
  • Modbus TCP Master/Slave (PV inverters, solar batteries)
  • Web API integration (REST http/https)
  • MQTT Broker/Client for IoT (e.g. Shelly)
  • KEBA EV charger control, solar surplus charging
  • Integrated online weather forecasts
  • OpenVPN server, TCP/UDP, e-mail and Telegram notifications
  • Responsive web visualization
  • DoorBird video intercom, RTSP IP camera streaming
  • ARM processor, 512 MB DDR3L — 1.8 W typical power consumption
  • DIN rail 4 modules — powered by KNX bus, no external PSU needed

EibStudio software

Free programming via Enertex® EibStudio (Windows/Linux/Mac): visual logic and visualization editor, integrated debugger, group monitor, over 1,200 ready-made macros. Import ETS 5 projects directly.

: EN-1159-01
Hurry! only 1 items left in stock.
