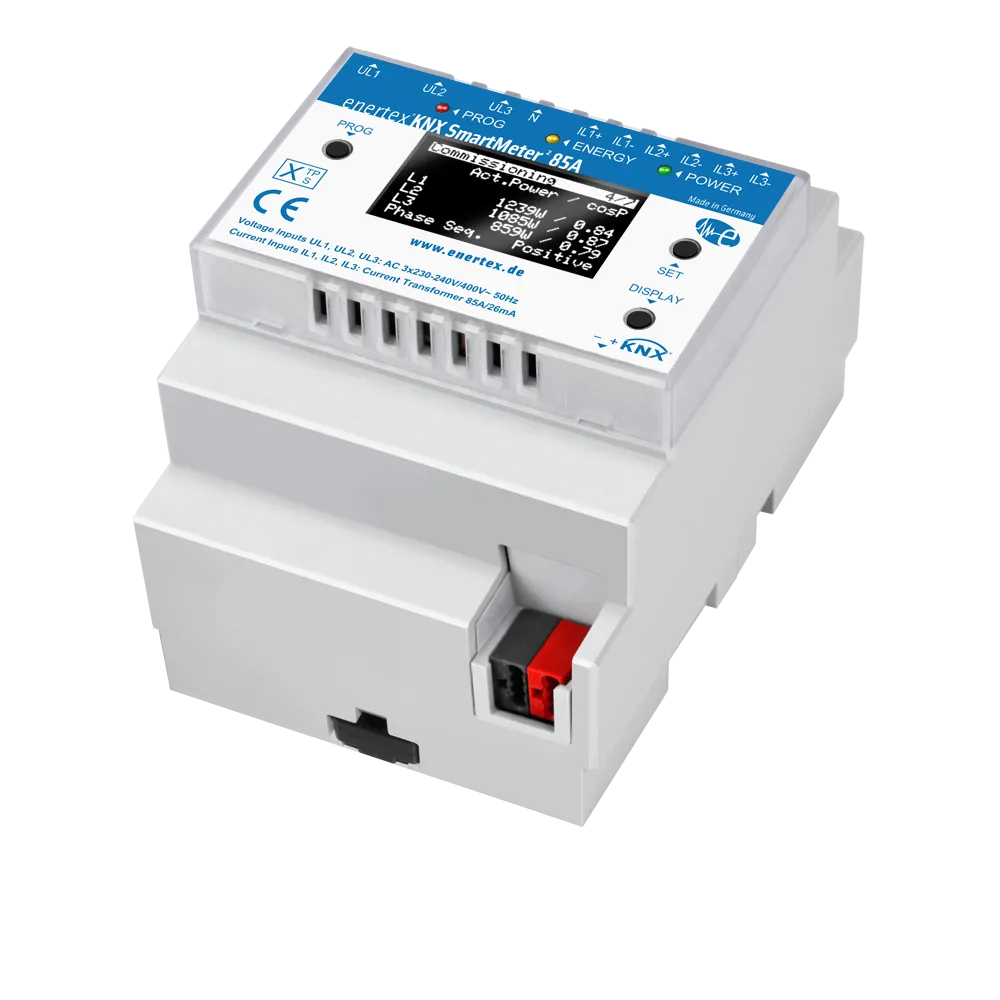

Enertex® KNX SmartMeter² 85A — Energy Meter Gen. 2
  • New

Enertex® KNX SmartMeter² 85A — Energy Meter Gen. 2

EN-1182-85
New

The Enertex® KNX SmartMeter² 85A (Gen. 2) is a bidirectional energy meter with integrated energy management. Class 0.5, 1% accuracy, up to 85A, KNX Data Secure. ⚠ Available from 15/09/2026.

check In Stock
Hurry! only 1 items left in stock.
€191.60
Tax excluded
Quantity

Disponibile
Add to Compare
Add to Wishlist

KNX SmartMeter² 85A — Bidirectional Energy Meter with Energy Management (Gen. 2)

The Enertex® KNX SmartMeter² 85A is a second-generation bidirectional energy meter with an integrated energy management module, measuring currents up to 85 A via split-core current transformers. Active power range: 1.2 W – 58 kW.

  • Measurement up to 85 A via supplied split-core CTs (easy installation)
  • Three-phase system or three independent single-phase systems — TN, TT, IT grids
  • Max. measurement error 1% — Class 0.5 CTs + Class 0.5 internal acquisition
  • Active power range: 1.2 W to 58 kW
  • Display: active power, voltage, phase sequence, power factor + 12 monthly / 12 yearly readings
  • Power quality: voltage, frequency, THD (current & voltage), neutral current, power factor, load imbalance
  • Bus-powered — only 0.6 W in normal operation
  • Integrated energy management module: automatic load switching based on PV surplus or electricity price thresholds
  • Supported loads: EV wallboxes, heat pumps, heating elements, battery storage, DHW (DPT 20.XXX)
  • Per-load parameters: priority, minimum run time, dead time, releases per day, blocking objects
  • KNX Data Secure — encrypted communication
  • DIN rail mount, 4 modules
  • ⚠ Available from 15/09/2026
: EN-1182-85
Hurry! only 1 items left in stock.
