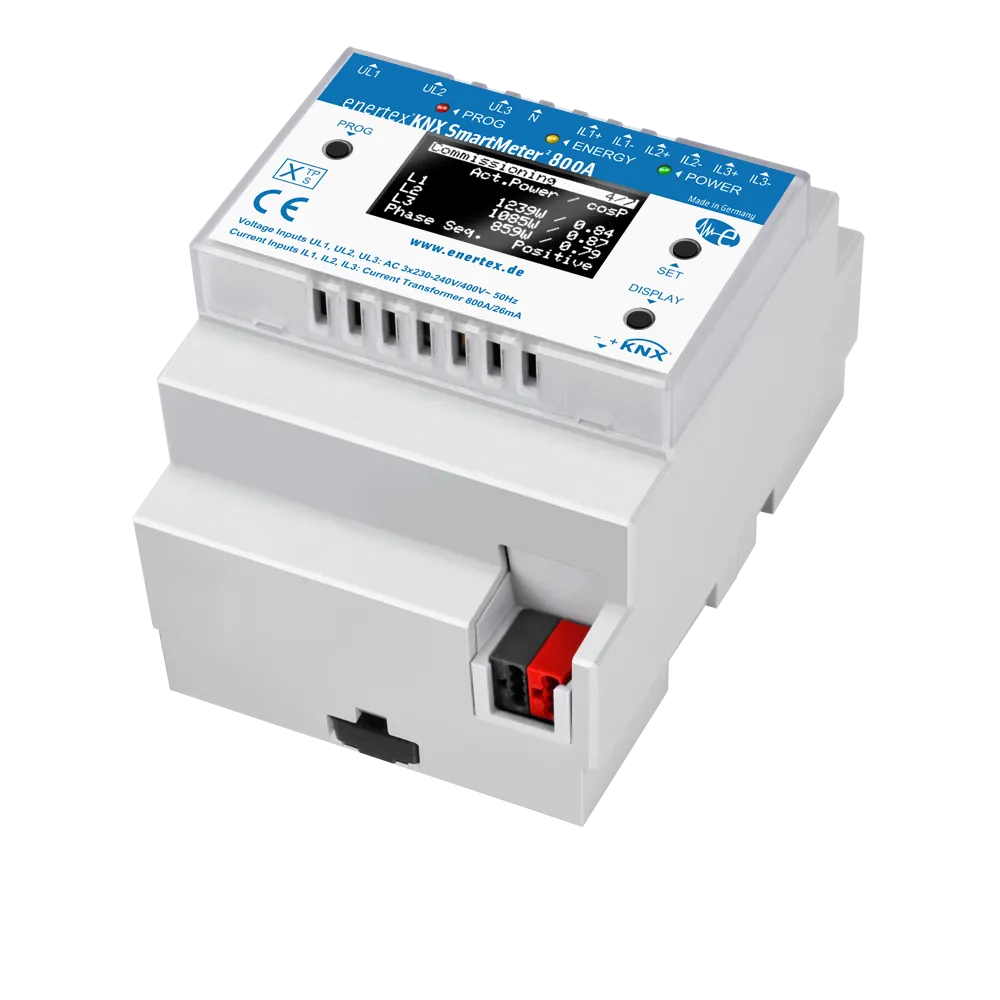

Enertex® KNX SmartMeter² 800A — Three-Phase Energy Meter Gen. 2
  • New

Enertex® KNX SmartMeter² 800A — Three-Phase Energy Meter Gen. 2

EN-1182-800
New

The Enertex® KNX SmartMeter² 800A (Gen. 2) is a three-phase bidirectional energy meter with integrated energy management. Class 0.5, 1% accuracy, up to 800A, KNX Data Secure. ⚠ Available from 15/09/2026.

check In Stock
Hurry! only 1 items left in stock.
€326.05
Tax excluded
Quantity

Disponibile
Add to Compare
Add to Wishlist

KNX SmartMeter² 800A — Bidirectional Energy Meter with Energy Management (Gen. 2)

The Enertex® KNX SmartMeter² 800A is the high-current version of the second-generation bidirectional energy meter, measuring up to 800 A via split-core CTs. Active power range: 11.5 W – 552 kW. Suited for large commercial and industrial KNX installations.

  • Measurement up to 800 A via supplied split-core CTs
  • Three-phase system or three independent single-phase systems — TN, TT, IT grids
  • Max. measurement error 1% — Class 0.5 CTs + Class 0.5 internal acquisition
  • Active power range: 11.5 W to 552 kW
  • Display: active power, voltage, phase sequence, power factor + 12 monthly / 12 yearly readings
  • Power quality: voltage, frequency, THD, neutral current, power factor, load imbalance
  • Bus-powered — only 0.6 W in normal operation
  • Integrated energy management module: automatic load switching (PV surplus, flexible tariffs)
  • Supported loads: EV wallboxes, heat pumps, heating elements, battery storage, DHW (DPT 20.XXX)
  • KNX Data Secure — encrypted communication
  • DIN rail mount, 4 modules
  • ⚠ Available from 15/09/2026
: EN-1182-800
Hurry! only 1 items left in stock.
New
