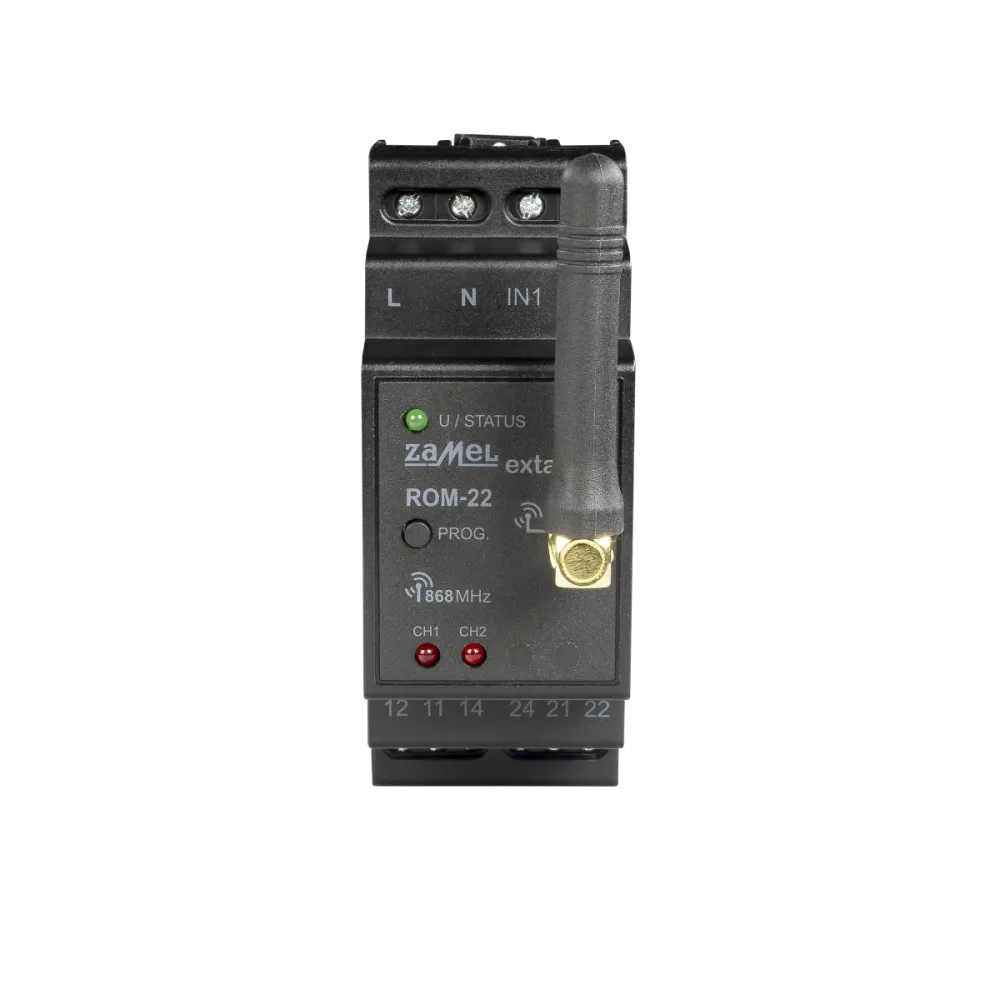

Smart Home 2-Channel Modular Radio Receiver Zamel EXTA LIFE ROM-22 RF 868 MHz
  • New


Smart Home 2-Channel Modular Radio Receiver Zamel EXTA LIFE ROM-22 RF 868 MHz

ZM ROM-22
New
  • 🔘 2 independent channels — 2x NO/NC relay, max 10 A each
  • 📡 Bidirectional RF 868 MHz — real-time channel status in app
  • 📦 DIN Rail TH35 — distribution cabinet installation
  • 🔌 230V AC — mains powered
  • 🔧 2 wired inputs — monostable or bistable switches
  • ⚡ Low and high voltage — 12/24 V AC/DC and 230 V AC
  • 🔁 OTA firmware — remote update via EFC-01
  • 📡 External antenna ready — screw-mount connector

🔗 EFC-01 Controller  |  ROM-22 Manual (PDF)

check In Stock
Hurry! only 10 items left in stock.
€112.05
Tax excluded
Quantity

Disponibile
Add to Compare
Add to Wishlist

The ROM-22 is the 2-channel modular radio receiver for the Smart Home Zamel EXTA LIFE system. It mounts on a DIN TH35 rail in the distribution cabinet and enables independent control of two devices or electrical circuits. The outputs consist of two changeover relays (NO/NC) with a maximum load of 10 A each — suitable for both low-voltage circuits (12/24 V AC/DC) and 230 V AC. Bidirectional RF 868 MHz communication ensures the status of each channel is always visible in the EXTA LIFE mobile app.

The ROM-22 modular radio receiver can be controlled by the EFC-01 controller via mobile app, or directly by EXTA LIFE transmitters without a controller. The 2 configurable wired inputs accept monostable or bistable switches, allowing existing physical controls to be retained. Firmware updates remotely via the controller without dismounting the device. The screw-mount antenna supports an external antenna — useful in metal enclosures or environments with weak signal

: ZM ROM-22
