Smart Home 4-Channel Modular Radio Receiver Zamel EXTA LIFE ROM-24 RF 868 MHz
  • New


Smart Home 4-Channel Modular Radio Receiver Zamel EXTA LIFE ROM-24 RF 868 MHz

ZM ROM-24
New
  • 🔘 4 independent channels — 4x NO relay, max 5 A each
  • 📡 Bidirectional RF 868 MHz — real-time channel status in app
  • 📦 DIN Rail TH35 — distribution cabinet installation
  • 🔌 230V AC — mains powered
  • 🔧 4 wired inputs — monostable or bistable switches
  • ⚡ Low and high voltage — 12/24 V AC/DC and 230 V AC
  • 🔁 OTA firmware — remote update via EFC-01
  • 📡 External antenna ready — screw-mount connector

🔗 EFC-01 Controller  |  ROM-24 Manual (PDF)

check In Stock
Hurry! only 10 items left in stock.
€115.09
Tax excluded
Quantity

Disponibile
Add to Compare
Add to Wishlist

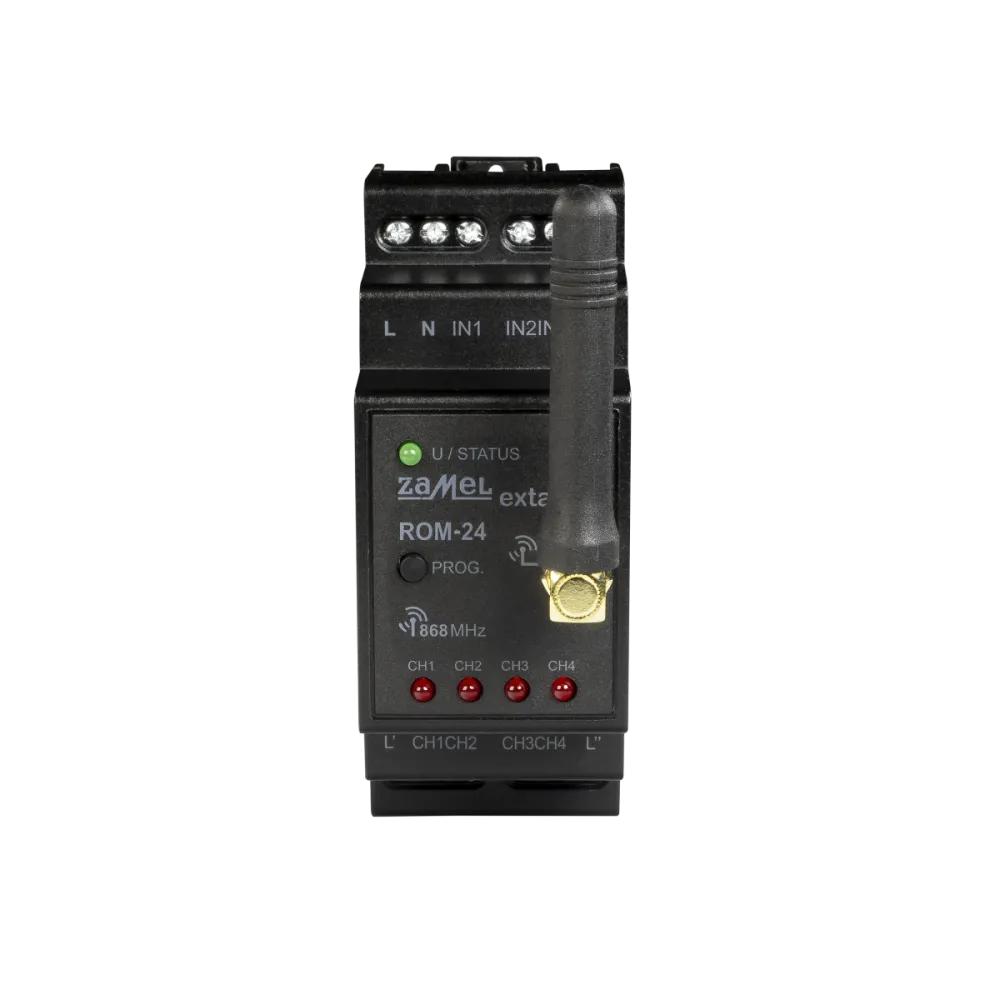

The ROM-24 is the 4-channel modular radio receiver for the Smart Home Zamel EXTA LIFE system. It mounts on a DIN TH35 rail in the distribution cabinet and allows independent control of up to four devices or electrical circuits. The outputs are four normally-open relays (NO) with a maximum load of 5 A each — compatible with both low-voltage (12/24 V AC/DC) and high-voltage (230 V AC) circuits. Bidirectional RF 868 MHz communication ensures the status of each channel is always visible in the EXTA LIFE mobile app.

The ROM-24 modular radio receiver is the 4-channel version of the ROM-22: it features 4 outputs and 4 programmable wired inputs for managing four independent zones from a single DIN module. Each channel has its own timer, configurable independently for radio transmitter, wired input and EFC-01 controller. Firmware updates remotely via controller without dismounting the device. The screw-mount antenna supports an external antenna for use in metal enclosures.

: ZM ROM-24
