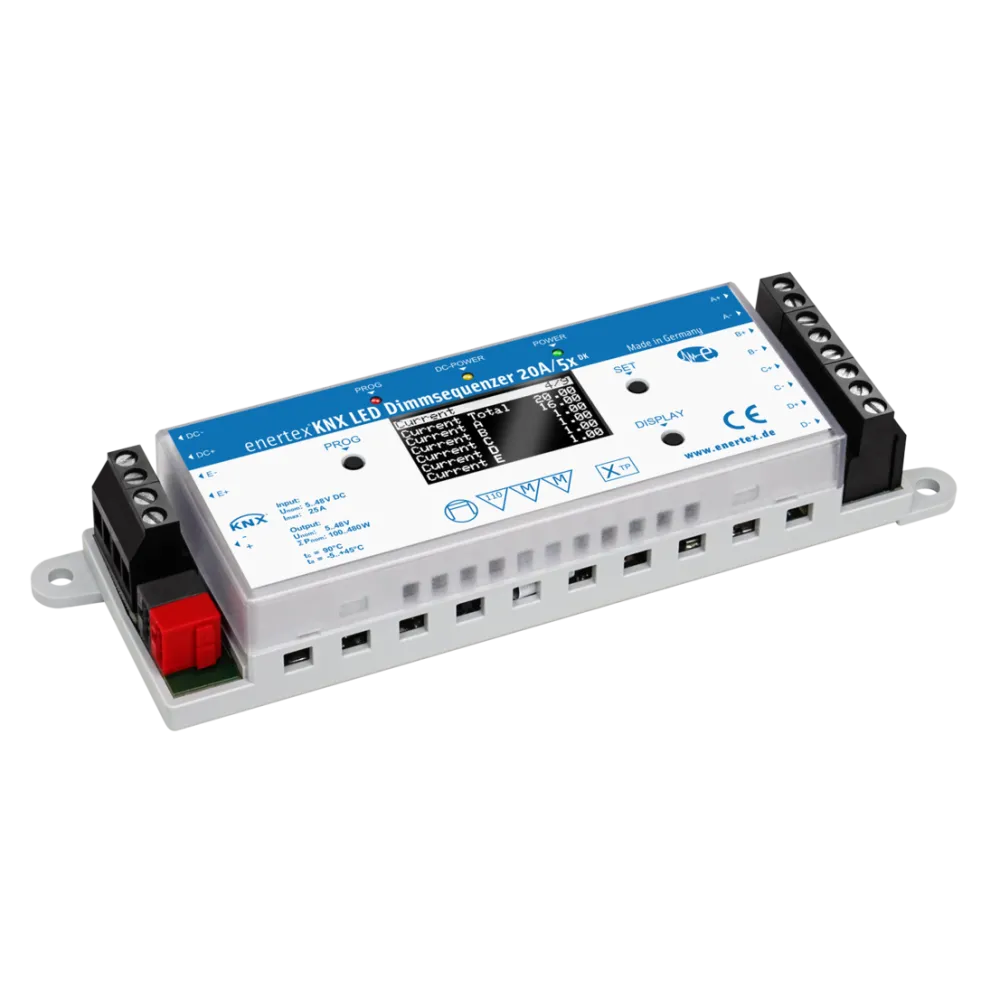

Enertex® KNX LED Dimmer Sequencer 20A/5x — Flush Mount (DK)
  • New

Enertex® KNX LED Dimmer Sequencer 20A/5x — Flush Mount (DK)

EN-1174-DK
New

The Enertex® KNX LED Dimmsequenzer 20A/5x DK is the flush-mount version of the 5-channel PWM LED dimmer (20A/channel, 480W, 5–48V DC). For concealed installation in furniture and ceilings. KNX Data Secure.

check In Stock
Hurry! only 1 items left in stock.
€221.85
Tax excluded
Quantity

Disponibile
Add to Compare
Add to Wishlist

KNX LED Dimmsequenzer 20A/5x — Flush Mount (DK)

The Enertex® KNX LED Dimmsequenzer 20A/5x DK is the flush-mount variant of the 5-channel LED dimmer, offering identical performance to the REG version in a compact form factor for hidden installation in furniture, ceilings or technical spaces. Double furniture marking included.

  • 5 independent channels, up to 20 A per channel — 480 W total
  • 5–48 V DC constant voltage LED loads
  • Flush mount (DK) — for furniture, ceilings, concealed spaces
  • Intelligent pulse pattern generation, RGBCCT, HCL, astro function
  • 4 dimming curves, PWM frequency 211–1200 Hz
  • 1-button commissioning, full measurement display
  • All protections of the REG version (reverse polarity, OV/UV, OT, selective OC/SC)
  • Energy and cost counters per channel
  • KNX Data Secure — encrypted communication
  • Cable length up to 50 m between dimmer and lamp
: EN-1174-DK
