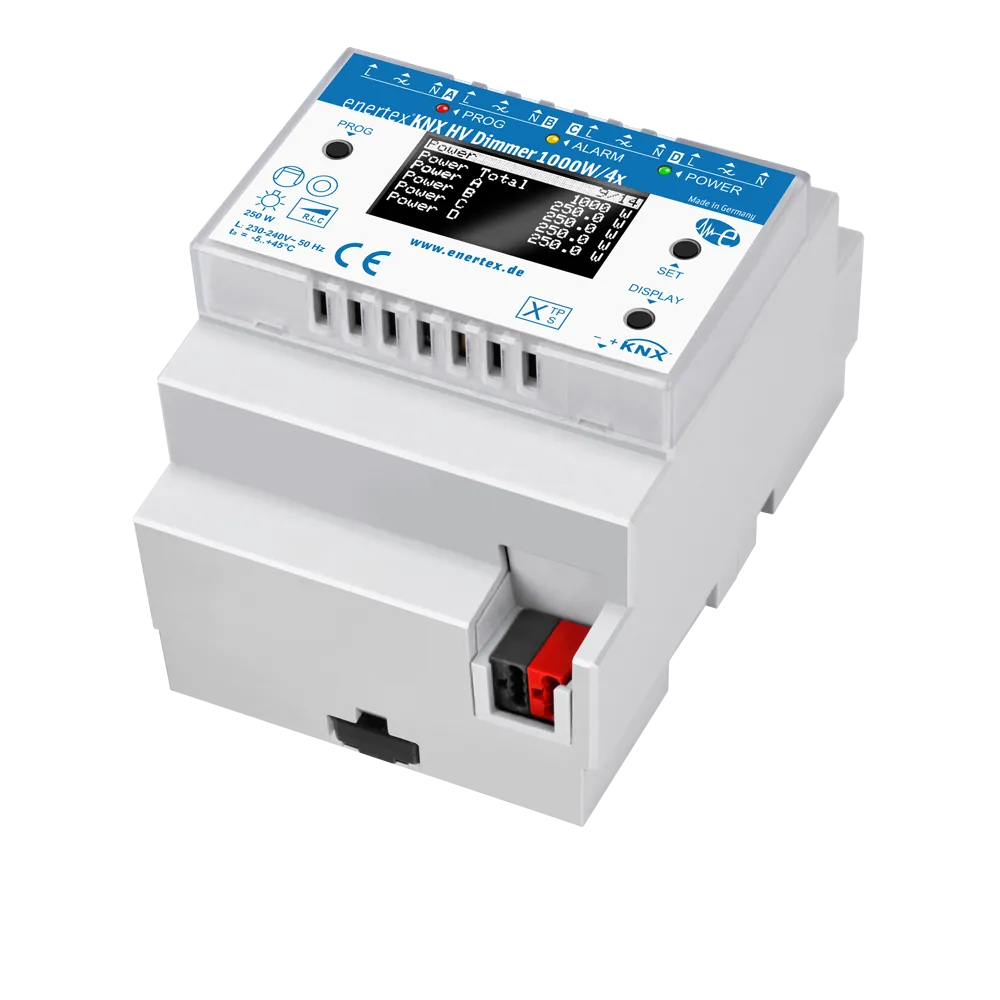

Enertex® KNX HV Dimmer 1000W/4x — High Voltage 4 Channels
  • New

Enertex® KNX HV Dimmer 1000W/4x — High Voltage 4 Channels

EN-1176-04
New

The Enertex® KNX HV Dimmer (4-channel) dims 230V AC lamps at up to 250W/channel (1000W total). Automated lamp calibration, no LED ghosting, lamp failure detection, energy meter. DIN rail.

check In Stock
Hurry! only 1 items left in stock.
€273.11
Tax excluded
Quantity

Disponibile
Add to Compare
Add to Wishlist

KNX HV Dimmer 1000W/4x — 230V AC, 4 Channels

The Enertex® KNX HV Dimmer (4-channel) is a 230V AC dimming actuator for all types of dimmable lamps. Each channel delivers 250 W; up to 4 channels can be operated in parallel for 1000 W total.

  • 4 channels × 250 W — 1000 W total, 230V AC
  • Compatible with dimmable LED, halogen and incandescent lamps
  • Automated lamp calibration — optimal dimming parameters determined automatically
  • LKV (lamp correction method) + SSV (low-light stabilization): smooth, flicker-free dimming across the full range
  • No LED ghosting — residual current reduced to 1/10 of conventional dimmers
  • Lamp failure detection per circuit — remote fault notification via KNX
  • Short-circuit, overload, overtemperature and overvoltage protection + configurable lamp protection
  • Wake-up light / sleep light comfort functions
  • Time-controlled dimming with day/night profiles and astro function (sunrise/sunset)
  • Integrated energy meter — electricity cost tracking
  • 64-entry timer for up to 64 group addresses, logic functions, holiday calendar, astro function
  • Blink function — 1-second interval visual alarm signal
  • Compact DIN rail mount — 4 modules
: EN-1176-04
